3.7V 51Ah NMC Prismatic Battery
High Quality SVOLT Contemporary Amperex Technology 3.7V 51Ah NMC Prismatic Battery
| Brand Name： | SVOLT |
| Battery Type： |
NMC Prismatic Battery |
| Nominal Capacity(Ah)： | 51AH |
| Nominal Voltage(V)： | 3.7V |
| Max Charge Voltage(V)： | 4.2V |
| Discharge Cut-off Voltage(V)： | 2.75V |
| Max Charge rate： | 1C |
| Max Discharge rate： | 3C |
| Internal Resistance： | ≤0.5mΩ |
| Charge Temperature(℃)： | 0°C~60°C |
| Discharge Temperature(℃)： | -20°C~60°C |
| Cycle life： | More than 2000 times |
| Weight: | 0.86 kg |

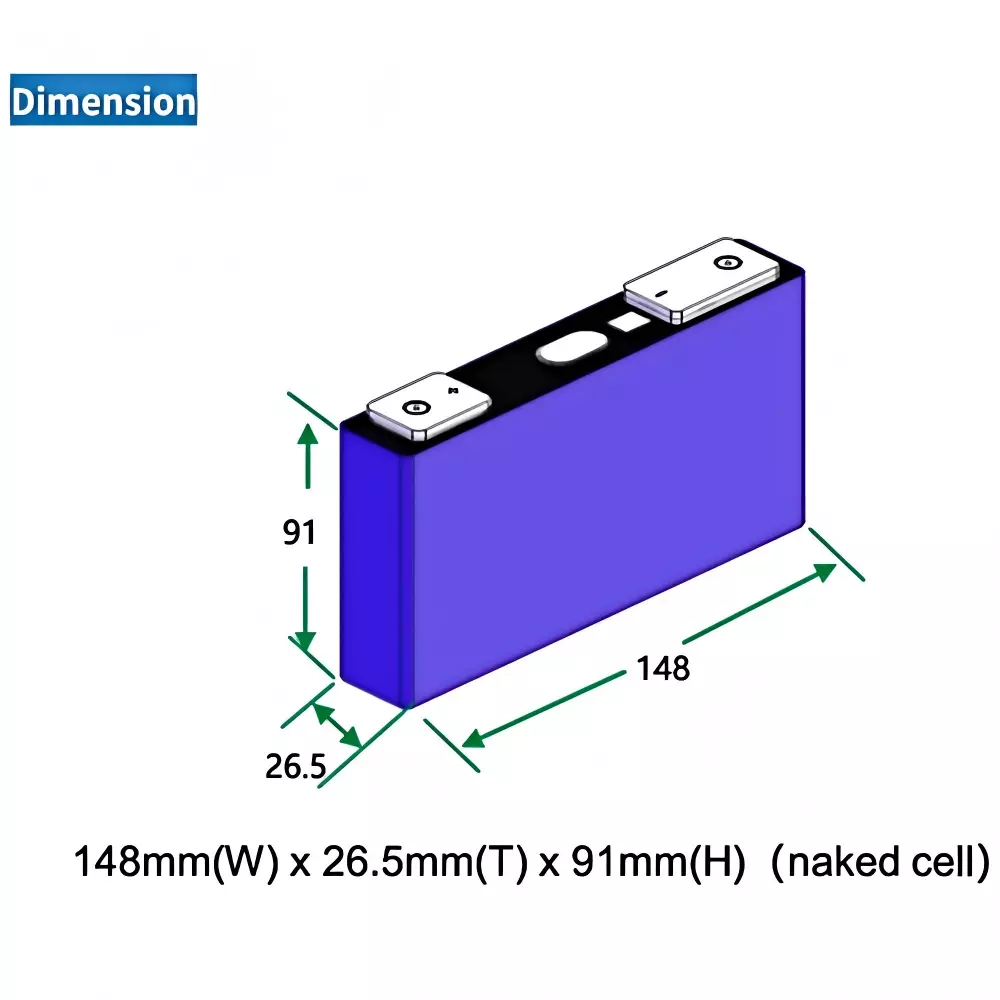

| Size(mm)： | T26.5*W148*H91(mm) |
| Certification： | CE,UL,UN38.3,MSDS |
Key Features:
1. High Energy Density
The SVOLT 3.7V 51AH LiFePO₄ prismatic battery achieves an energy density of ≥210Wh/kg, enabling compact design without sacrificing energy storage.
2. Strong Discharge Performance
With a maximum continuous discharge current of 153A and a short - pulse discharge current of 416A, it supports 3C - level discharge rate for high - power applications.
3. Low Internal Resistance
The low internal resistance ensures efficient power transfer, minimizing energy loss during charge and discharge cycles.
4. Wide Operating Temperature Range
Operates in a broad temperature range: charging from - 20°C to 55°C and discharging from - 30°C to 55°C, with adjustable voltage ranges for extreme temperatures (e.g., 2.1 - 4.2V at ≤ - 20°C).
Application:
1. Electric Vehicles
The SVOLT 3.7V 51AH LiFePO₄ prismatic battery powers electric cars, delivering reliable energy for daily commuting and long - distance travel.
2. Recreational & Utility Vehicles
Ideal for boats (marine energy storage) and forklifts (industrial material handling), providing stable power in rugged environments.
3. Urban Mobility Solutions
Supports electric motorcycles and tricycles, offering efficient energy for short - range urban transportation with quick charging capabilities.
4. Golf Carts
Enables eco - friendly, quiet operation in golf courses and resorts, with its high discharge performance ensuring smooth acceleration and hill climbing.
