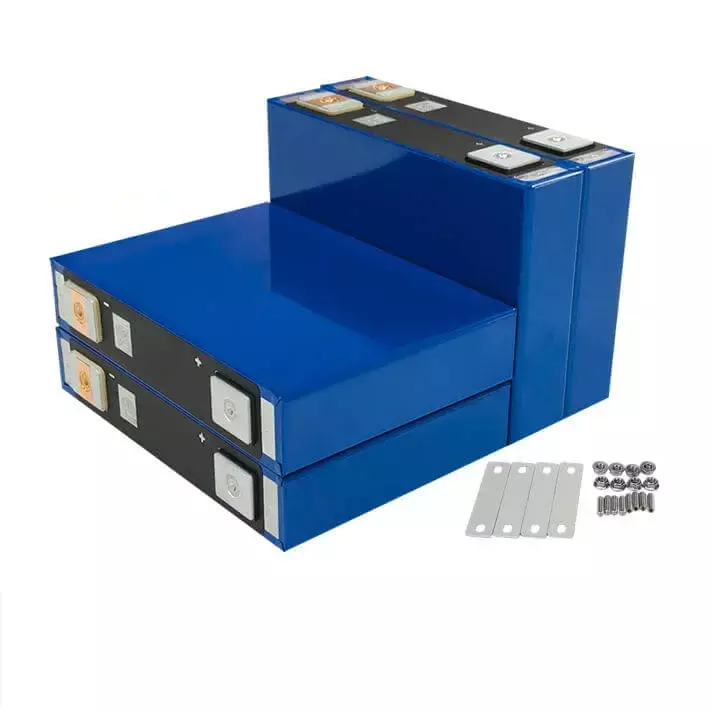

3.7V 100Ah NMC Prismatic Battery
Brand: HAICHEN
MOQ: 2 Pieces
Delivery time: 15 Day
Battery Type: Ncm Prismatic Battery
Capacity: 100AH
Nominal Voltage(V): 3.7V
Max Discharge Rate: 3C
Internal Resistance: ≤0.6 mΩ
Charge Temperature(°C): -20°C~55°C
Discharge Temperature(°C): -35°C~55°C
Cycle life: More than 2000 times
Weight: 1.616kg
Size: T34.5*W173*H120(mm)
Product Details
As an authorized global distributor of catl nmc battery products, we are proud to offer the CATL LN34173120-100Ah nmc lithium ion battery – the industry benchmark for automotive-grade performance and reliability. Manufactured to the strictest ISO9001 and IEC 62619 standards, this prismatic cell delivers exceptional energy density, industry-leading low-temperature performance, and unmatched long-term durability for B2B OEM and ODM clients worldwide.
Official Technical Specifications (CATL LN34173120-100Ah)
| Parameter | Specification |
| Cell Model | LN34173120-100Ah |
| Typical/Nominal Capacity | 100Ah @ 1C |
| Nominal Voltage | 3.7V |
| Nominal Energy | 375.95Wh @ 1C |
| Charge Voltage (Cutoff Current) | 4.4V |
| Discharge Cutoff Voltage | 2.5V |
| Max Continuous Discharge Current | 1C (100A) |

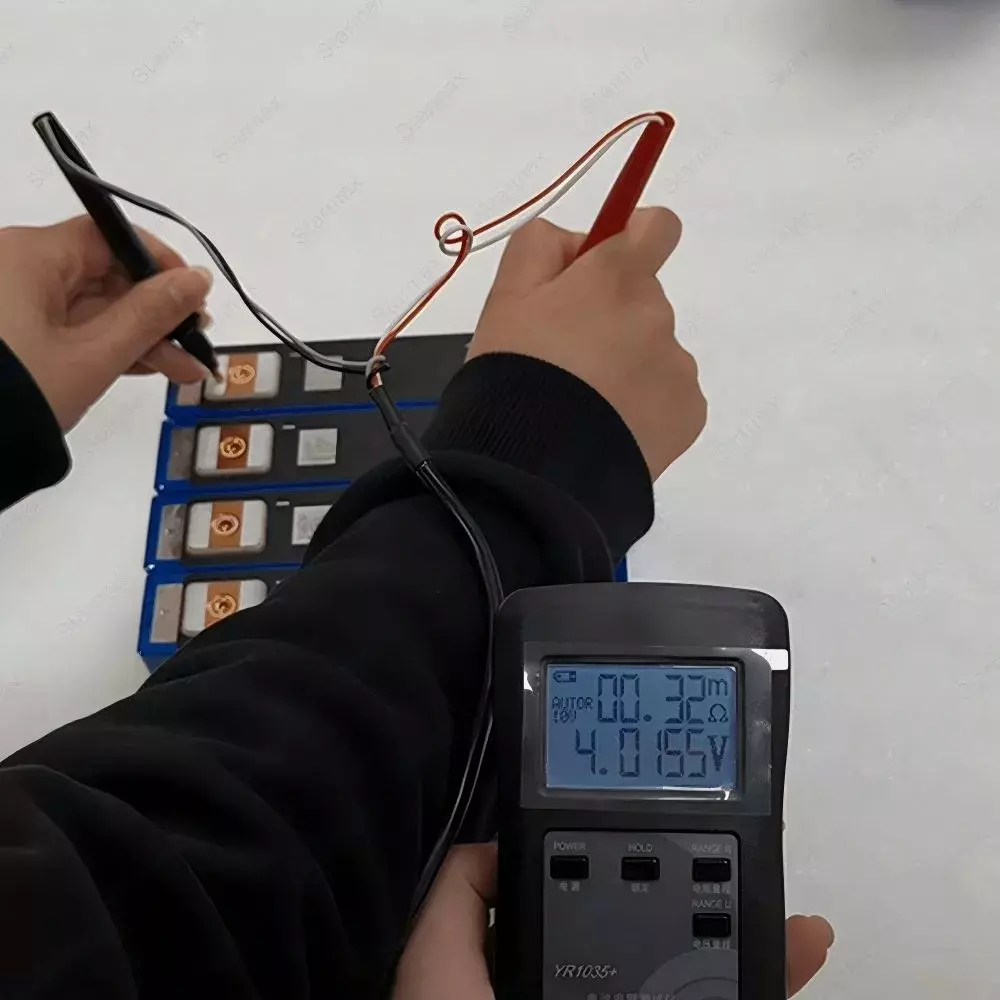

| Internal Resistance | ≤0.40mΩ (AC Impedance, 1000Hz) |
| Charge Temperature Range | -20°C ~ 55°C |
| Discharge Temperature Range | -35°C ~ 55°C |
| Cell Dimensions | 173mm (W) × 120.5mm (H) × 34.5mm (T) |

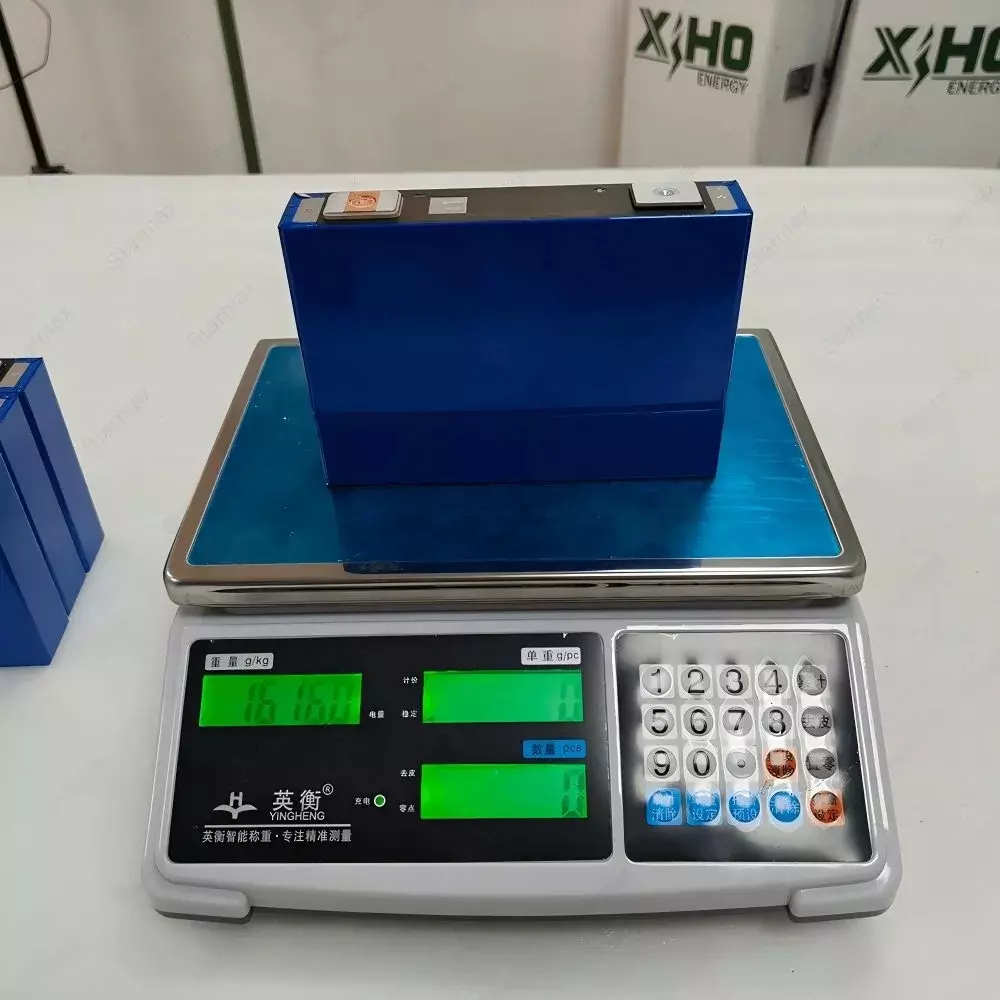

| Weight | 1616 ± 10g |
| Safety Certifications | UL1642, UN38.3, IEC 62133, IEC 61960, CE |
